ELM327 Identifier

Use this app to identify the real ELM327 version you have, because a lot of China clone adapters often declare a wrong ELM327 compatibility.

ELM327 Identifier sends almost all AT commands available and shows what are supported in accordance with the ELM327 official datasheet (up to firmware v2.2 and v2.3 experimental), so you can quickly check if the adapter declaration is correct or if it's a fake adapter.

Some AT command requires a car connection with specific protocol to work; to obtain comparable results, these commands aren't checked by the app. The number of AT commands checked are 114.

HOW TO USE THE APP

1 - power on the ELM327 adapter (by the car diagnostic interface or simply by a power supply)

2 - if not already done, pair the ELM327 adapter from the android device bluetooth settings or connect ELM327 wifi with the android device

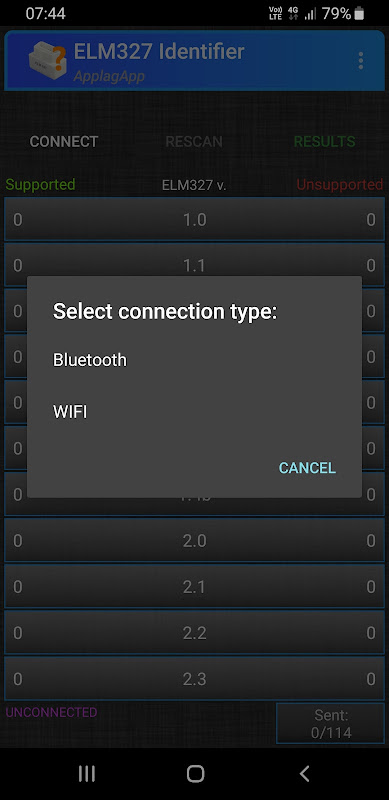

3 - start the app and press CONNECT button, select the connection type and eventually select the paired ELM327 adapter

4 - after the correct connection, the scan automatically starts

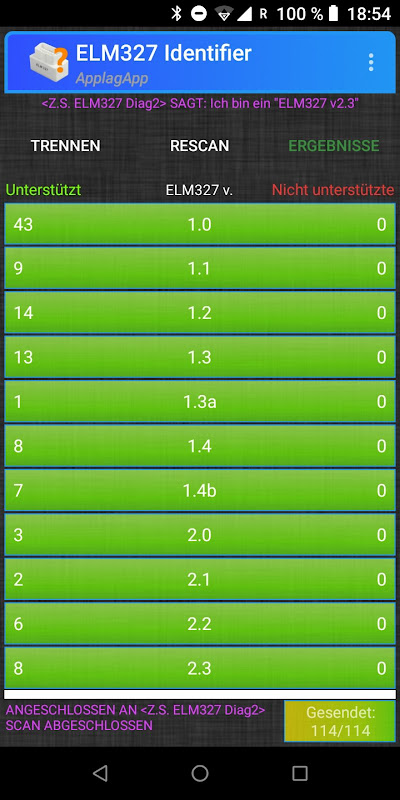

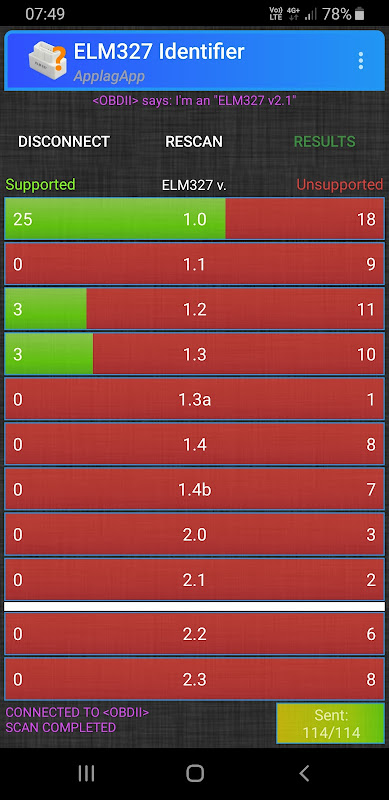

5 - wait for the end of the scan and check the results on screen, a white bar shows you what commands (above) should be supported

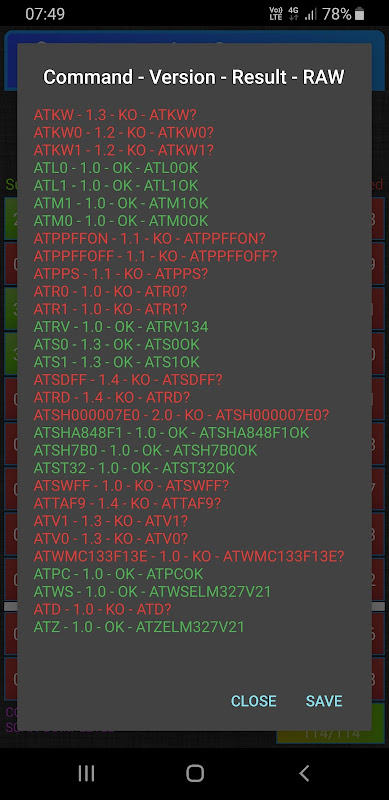

6 - press RESULTS to show scanning details and optionally save results into the internal SD card.

7 - optionally press RESCAN button if you want to verify again the adapter

IMPORTANT: a fake adapter doesn't mean that it will not work with your applications.

If you are interested in translating the strings of the app in your language, send me an email and I'll give you the strings set to translate.

Thanks to translators:

french: jmranger

russian: obd24.ru

brazilian-portuguese: João Calby

czech: Algy

turkish: m.eren damar

dutch and german: Danny Gloudemans

polish: Adrian Feliks

arabic: MaiThamDobais

serbian: SkyShop Team

persian: Bobak

lithuanian: Shapras

portuguese: Daniel Nunes

romanian: eudin77

ukrainian: Oleksa

danish: Payne, Denmark

spanish: Pablo Salinas

chinese: www.car-tw.net

hungarian: rstolczi

Discussion forum: https://www.applagapp.com/forum/

Introduction

ELM327 Identifier is a software application that allows users to identify and diagnose problems with their vehicles. It is compatible with a wide range of vehicles, including those manufactured by Ford, General Motors, Chrysler, Toyota, and Honda. ELM327 Identifier uses the ELM327 OBD-II (On-Board Diagnostics) adapter to connect to the vehicle's computer and retrieve diagnostic information.

Features

ELM327 Identifier offers a variety of features that make it a valuable tool for vehicle owners and mechanics. These features include:

* Vehicle identification: ELM327 Identifier can identify the make, model, and year of a vehicle, as well as its engine size and transmission type.

* Diagnostic trouble code (DTC) retrieval: ELM327 Identifier can retrieve DTCs from the vehicle's computer. These codes can help to identify the source of a problem with the vehicle.

* Live data monitoring: ELM327 Identifier can monitor live data from the vehicle's sensors, such as engine speed, coolant temperature, and fuel level. This data can be used to diagnose problems with the vehicle's performance.

* Freeze frame data retrieval: ELM327 Identifier can retrieve freeze frame data from the vehicle's computer. This data can be used to identify the conditions under which a DTC was set.

* Emission test readiness: ELM327 Identifier can check the vehicle's emission control systems to determine if it is ready for an emissions test.

Benefits

ELM327 Identifier offers a number of benefits to users, including:

* Save money: ELM327 Identifier can help users to save money on vehicle repairs by allowing them to diagnose problems themselves.

* Avoid unnecessary repairs: ELM327 Identifier can help users to avoid unnecessary repairs by providing them with accurate diagnostic information.

* Improve vehicle performance: ELM327 Identifier can help users to improve the performance of their vehicles by identifying and fixing problems that may be affecting their performance.

Conclusion

ELM327 Identifier is a valuable tool for vehicle owners and mechanics. It offers a variety of features that can help to diagnose problems with vehicles and improve their performance. ELM327 Identifier is easy to use and affordable, making it a great choice for anyone who wants to take control of their vehicle's maintenance and repair.
