Download PROTO - circuit simulator APK (1.31.0) for Android for free. Build, simulate and learn about electronic circuits with PROTO circuit simulator

Content

Build, simulate and learn about electronic circuits with PROTO circuit simulator

Are you looking for tools like Multisim, SPICE, LTspice, Proteus or Altium? That's great! PROTO is an real time electronic circuit simulator which means you are able to setup a circuit with various components and simulate behaviour of the electronic circuit.

During simulation you can check voltages, currents and many other variables. Check signals on multichannel oscilioscope and tune your circuit in real time! Our app can greatly help with your Raspberry Pi, Arduino or ESP32 project. You can also use PROTO as logic circuit simulator and perform digital electronic analysis!

* You can report an issue or make component request at https://github.com/Proto-App/Proto-Android/issues *

Features:

+ Animations of voltage values and current flows

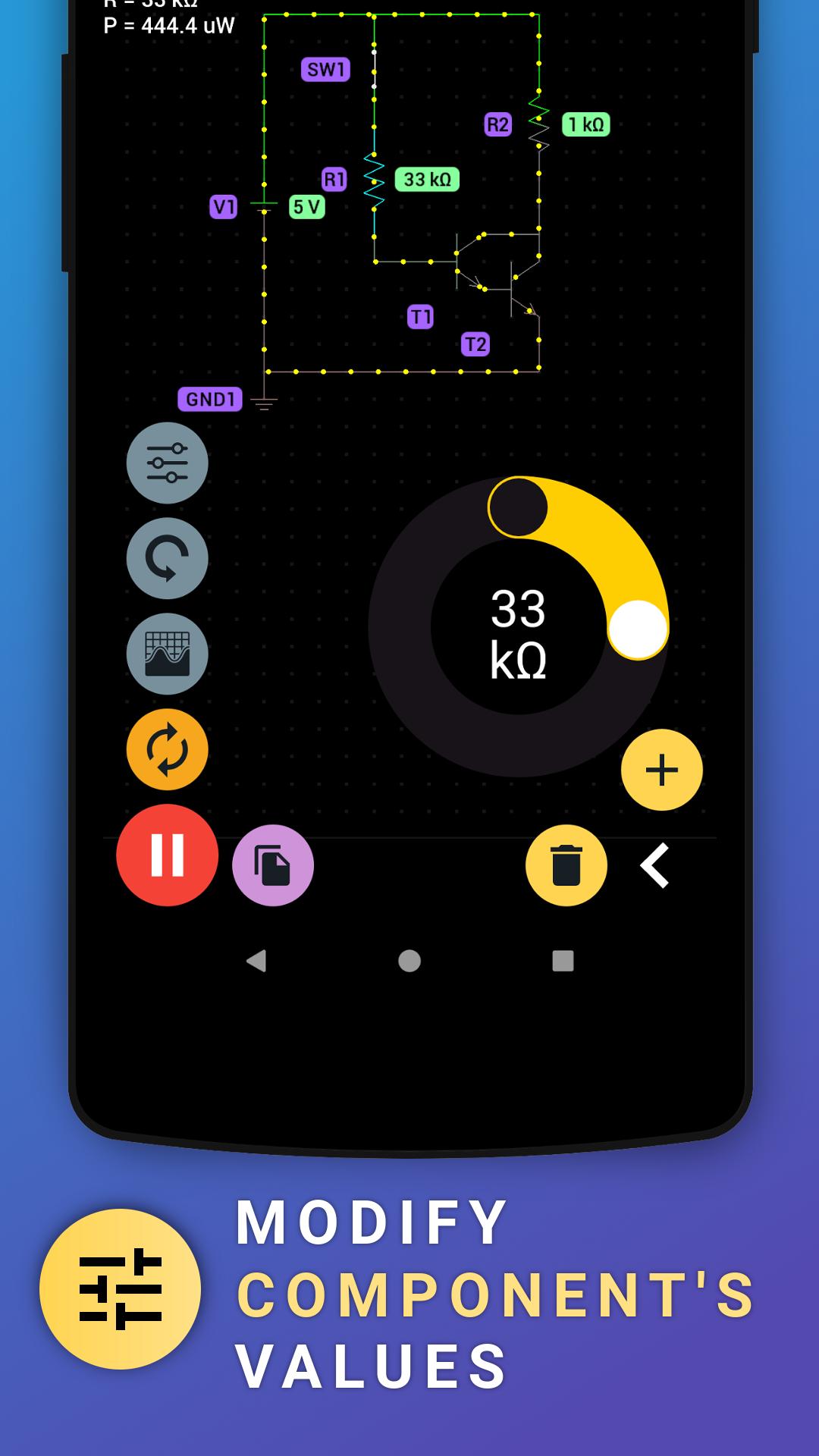

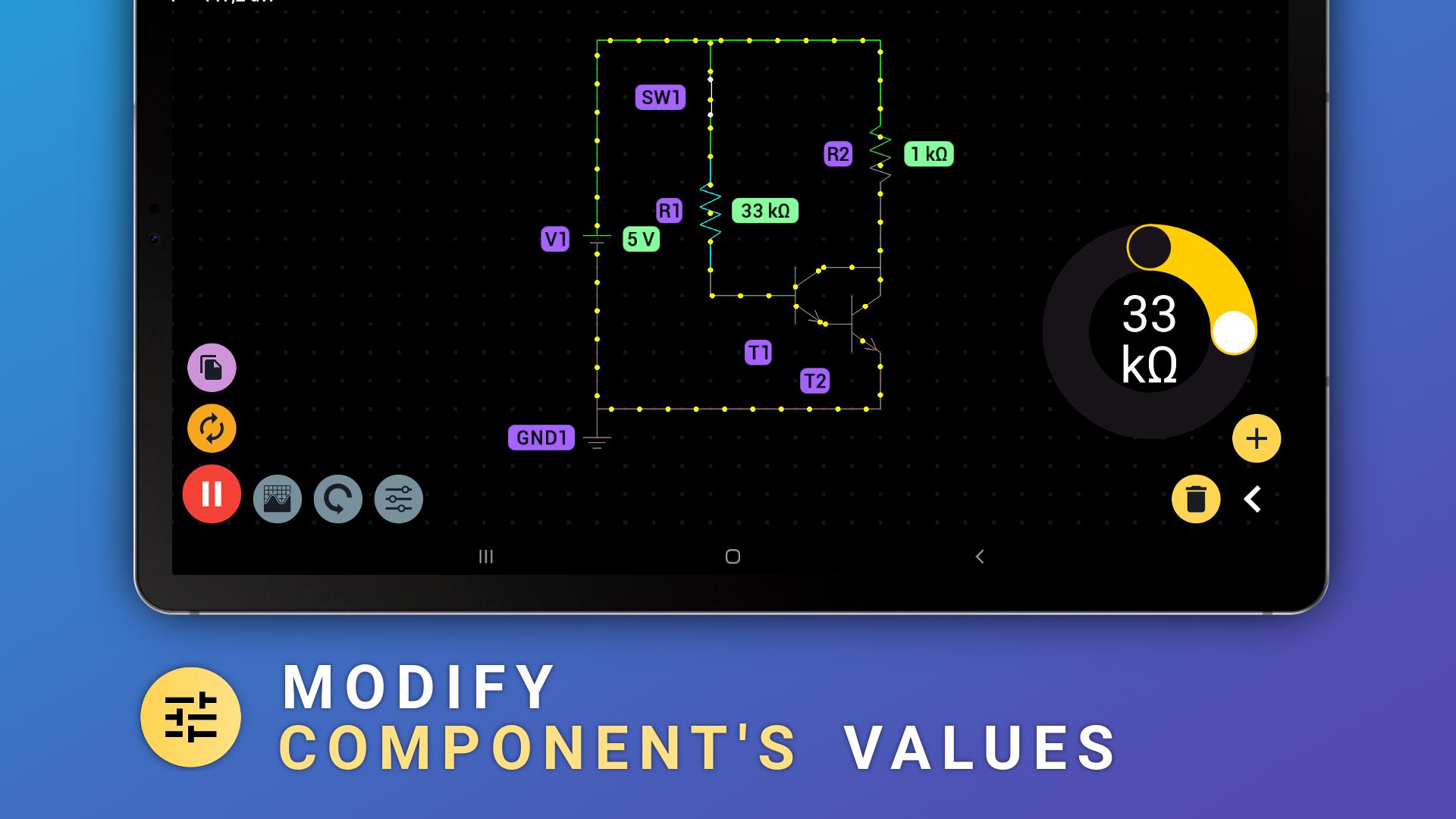

+ Adjusts circuit parameters (like voltage, current and other)

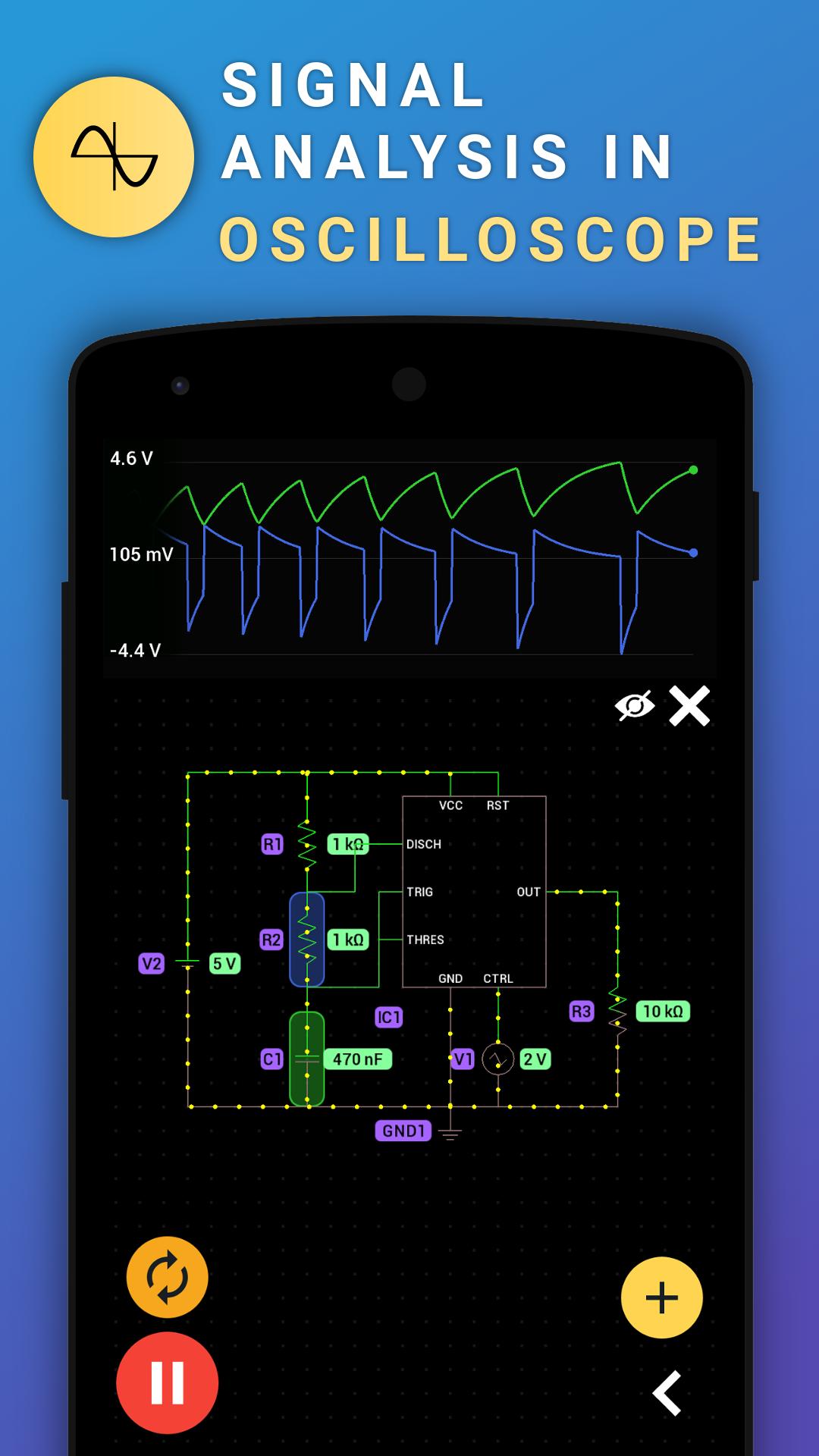

+ Four-channel oscilloscope

+ Single play/pause button to control simulation

+ Copy electronic components

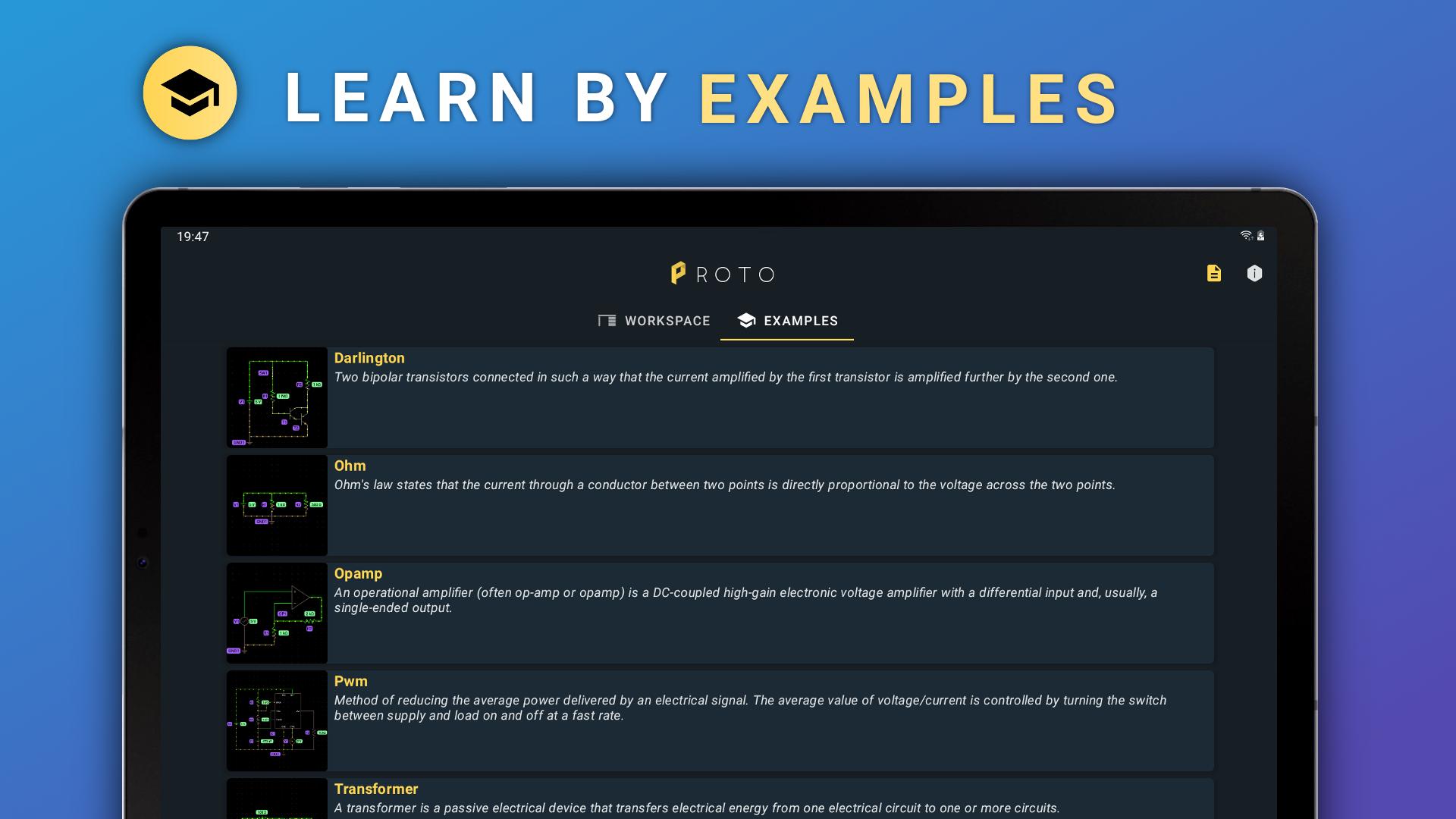

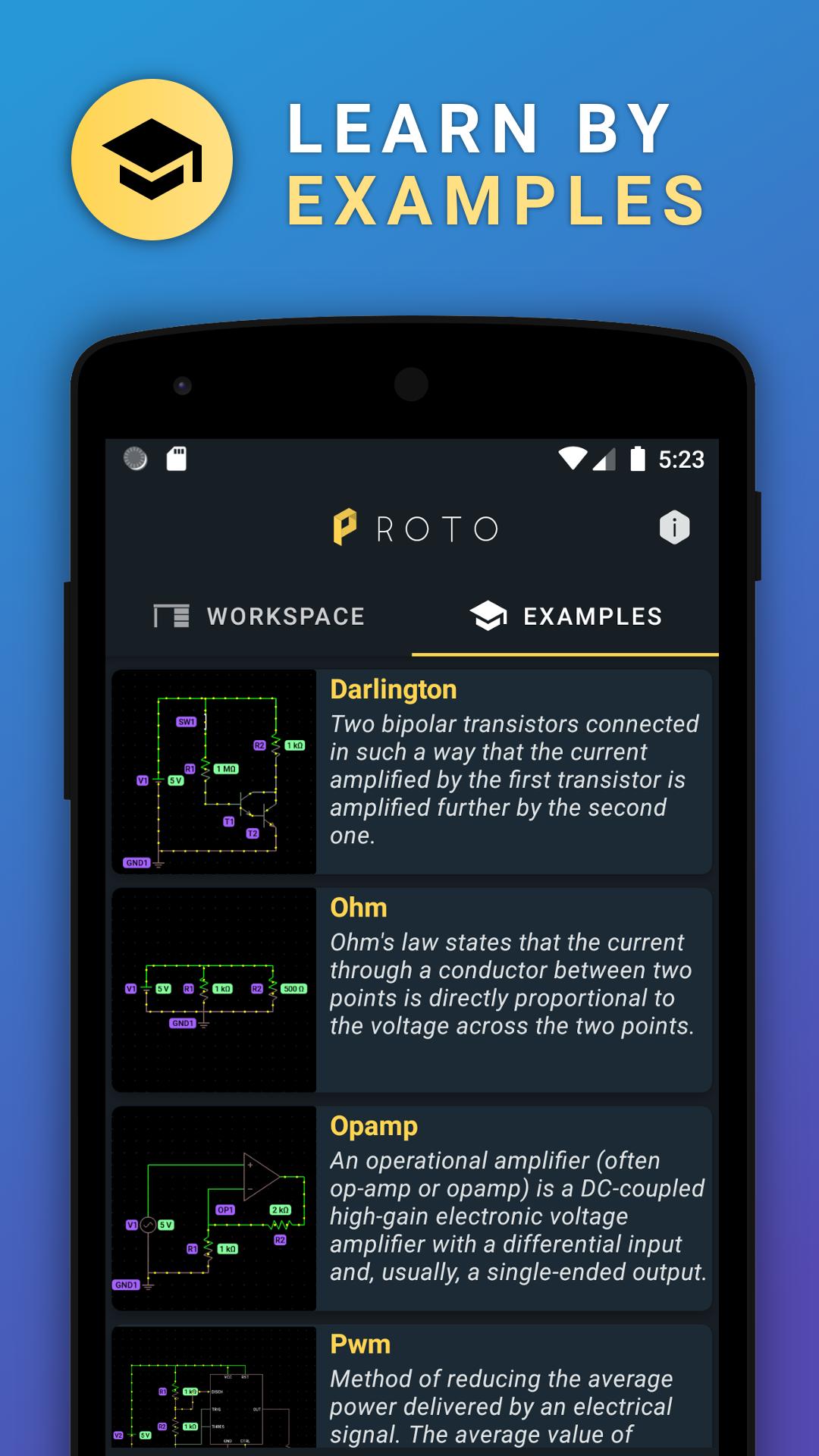

+ Learn about electronic circuits by examples in app

+ Share circuit with friends

+ Themes (Dark, Light, Ocean, Solarized)

+ PNG, JPG, PDF circuit export

+ Export workspace

+ Video tutorials about electronics

+ Arduino support in future

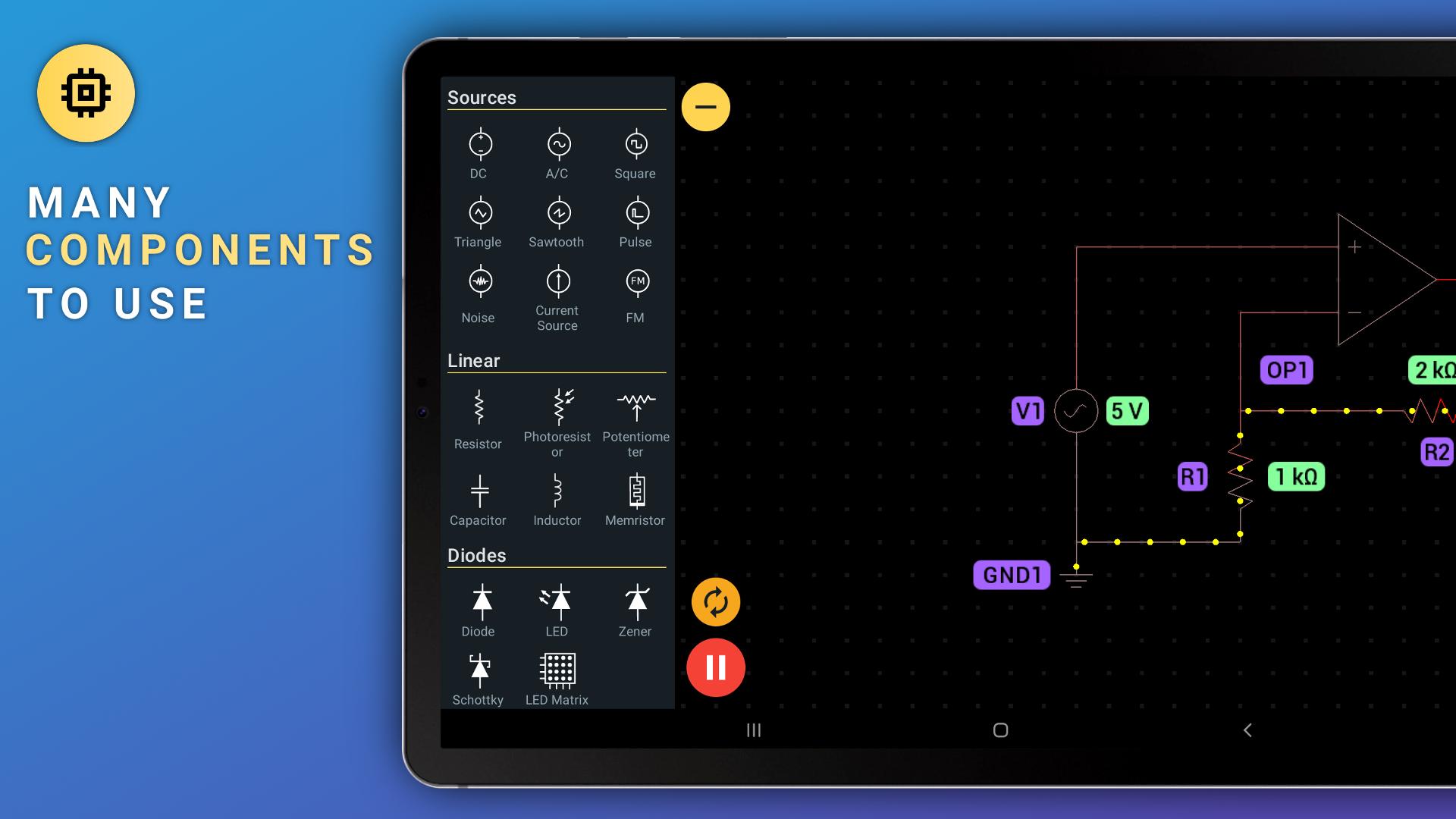

Components:

+ DC, AC, Square, Trinagle, Sawtooth, Pulse, Noise voltage source

+ Current source

+ Resistor

+ Potentiometer

+ Capacitor

+ Polarized capacitor

+ Inductor

+ Transformer

+ Diode (rectifying diode, LED, Zener, Schottky)

+ Transistor (NPN, PNP, N and P channel Mosfet)

+ Switches (SPST, Relay)

+ Bulb

+ Operational amplifier

+ Timer 555 (NE555)

+ Digital Gates (AND, NAND, OR, XOR, NOR, NXOR, Inverter)

+ Voltmeter

+ Ammeter

+ Fuse

+ Photoresistor (uses phone light sensor)

+ Analog-to-digital converter (ADC)

+ Accelerometer (uses phone accelerometer sensor)

+ FM source

+ Logic Input

+ Memristor

+ Logic output

+ Probe

+ Voltage rail

Analog Pack:

+ Tunnel diode

+ Varactor

+ NTC Thermistor

+ Center tapped transformer

+ Schmitt trigger

+ Schmitt trigger (inverting)

+ Solar cell

+ TRIAC

+ DIAC

+ Thyristor

+ Triode

+ Darlington NPN

+ Darlington PNP

+ Analog SPST

+ Analog SPDT

Digital Pack:

+ Adder

+ Counter

+ Latch

+ PISO Register

+ SIPO Register

+ Seven segment decoder

+ Sequence generator

+ D Flip-flop

+ T Flip-flop

+ JK Flip-flop

+ Multiplexer

+ Demultiplexer

+ Voltage controlled current source (VCCS)

+ Voltage controlled voltage source (VCVS)

+ Current controlled current source (CCCS)

+ Current controlled voltage source (CCVS)

+ Optocoupler

Misc Pack:

+ Wobbulator

+ AM Source

+ SPDT Switch

+ Digital to analog converter (DAC)

+ Antenna

+ Spark gap

+ LED Bar

+ 7 segment LED

+ RGB LED

+ Ohmmeter

+ Audio input

+ Microphone

+ Device battery

+ DC Motor

+ 14 segment LED

+ Diode bridge

+ Crystal

+ Voltage regulators (78xx family)

+ TL431

+ Buzzer

+ Frequency meter

JavaScrip Pack:

+ Write code

+ JavaScript interpreter (ES2020 class)

+ Access to IC inputs in code

+ Access to IC outputs in code

+ Four custom ICs

7400 TTL Pack:

+ 7404 - hex inverter

+ 7410 - triple 3-input NAND Gate

+ 7414 - hex Schmitt-trigger inverter

+ 7432 - quadruple 2-input OR gate

+ 7440 - dual 4-input NAND buffer

+ 7485 - 4-bit magnitude comparator

+ 7493 - binary counter

+ 744075 - triple 3-input OR gate

+ 741G32 - single 2-input OR gate

+ 741G86 - single 2-input XOR gate

4000 CMOS Pack:

+ 4000 - dual 3-input NOR gate and inverter.

+ 4001 - quad 2-input NOR gate.

+ 4002 - dual 4-input NOR gate.

+ 4011 - quad 2-input NAND gate.

+ 4016 - quad bilateral switch.

+ 4017 - 5-stage Johnson decade counter.

+ 4023 - triple 3-input NAND gate.

+ 4025 - triple 3-input NOR gate.

+ 4081 - quad 2-input AND gate.

+ 4511 - BCD to 7-segment decoder.

Sensors pack:

+ Pressure

+ Gyroscope

+ Light

+ Magnetic field

+ Proximity

+ Temperature

+ Humidity

PROTO - Circuit Simulator: A Comprehensive Guide for Experienced Players

PROTO is a sophisticated circuit simulator that empowers users to design, analyze, and optimize complex electronic circuits. Its intuitive interface and comprehensive features make it an indispensable tool for electrical engineers, students, and hobbyists alike.

Circuit Creation and Editing:

PROTO offers a user-friendly environment for creating and editing circuits. Its extensive library of components, including resistors, capacitors, transistors, and integrated circuits, allows for the seamless construction of even the most intricate designs. The intuitive drag-and-drop interface enables users to quickly assemble circuits and make real-time adjustments.

Circuit Analysis:

PROTO's robust analysis engine provides a comprehensive suite of tools for evaluating circuit behavior. Users can perform DC, AC, and transient analyses to obtain detailed insights into voltage, current, and power characteristics. The software supports a wide range of analysis methods, including nodal analysis, loop analysis, and Fourier analysis.

Optimization and Troubleshooting:

PROTO includes advanced optimization algorithms that enable users to refine their circuit designs for optimal performance. The software can automatically adjust component values or circuit topology to meet specific design criteria, such as minimizing power consumption or maximizing efficiency. PROTO also provides comprehensive troubleshooting capabilities, allowing users to identify and resolve errors in their designs.

Graphical Visualization:

PROTO features a powerful graphical visualization engine that displays circuit schematics, waveforms, and other data in an intuitive and informative manner. Users can zoom in and out of circuits, pan across the workspace, and toggle between different views to gain a clear understanding of circuit behavior.

Component Libraries:

PROTO comes equipped with an extensive library of component models that represent a wide range of electronic devices. Each component is characterized by accurate parameters and behavior, ensuring reliable simulation results. Users can also create and import their own component models, extending the software's capabilities.

Simulation Control:

PROTO provides granular control over simulation parameters, allowing users to fine-tune their analyses. They can specify the simulation time step, initial conditions, and solver settings to achieve the desired accuracy and performance. The software also supports batch simulations, enabling users to automate the analysis of multiple circuits.

Import and Export:

PROTO supports the import and export of circuit designs in various industry-standard formats, including SPICE, Verilog-A, and VHDL-AMS. This allows users to seamlessly exchange designs with other software tools and collaborate with colleagues.

Conclusion:

PROTO is a versatile and powerful circuit simulator that caters to the needs of experienced players. Its comprehensive features, intuitive interface, and accurate simulation engine make it an invaluable tool for designing, analyzing, and optimizing complex electronic circuits. Whether you are an electrical engineer, student, or hobbyist, PROTO provides the capabilities and flexibility to bring your circuit ideas to life.
